Transformers play a crucial role in electrical systems by converting electricity and regulating voltage. Numerous applications widely utilize both half-bridge and full-bridge transformers. Each kind has its advantages that are best suited to the specific demands of the electrical system. This blog will compare and contrast these two types of transformers, highlighting their significant differences and discussing their applications in modern power electronics.

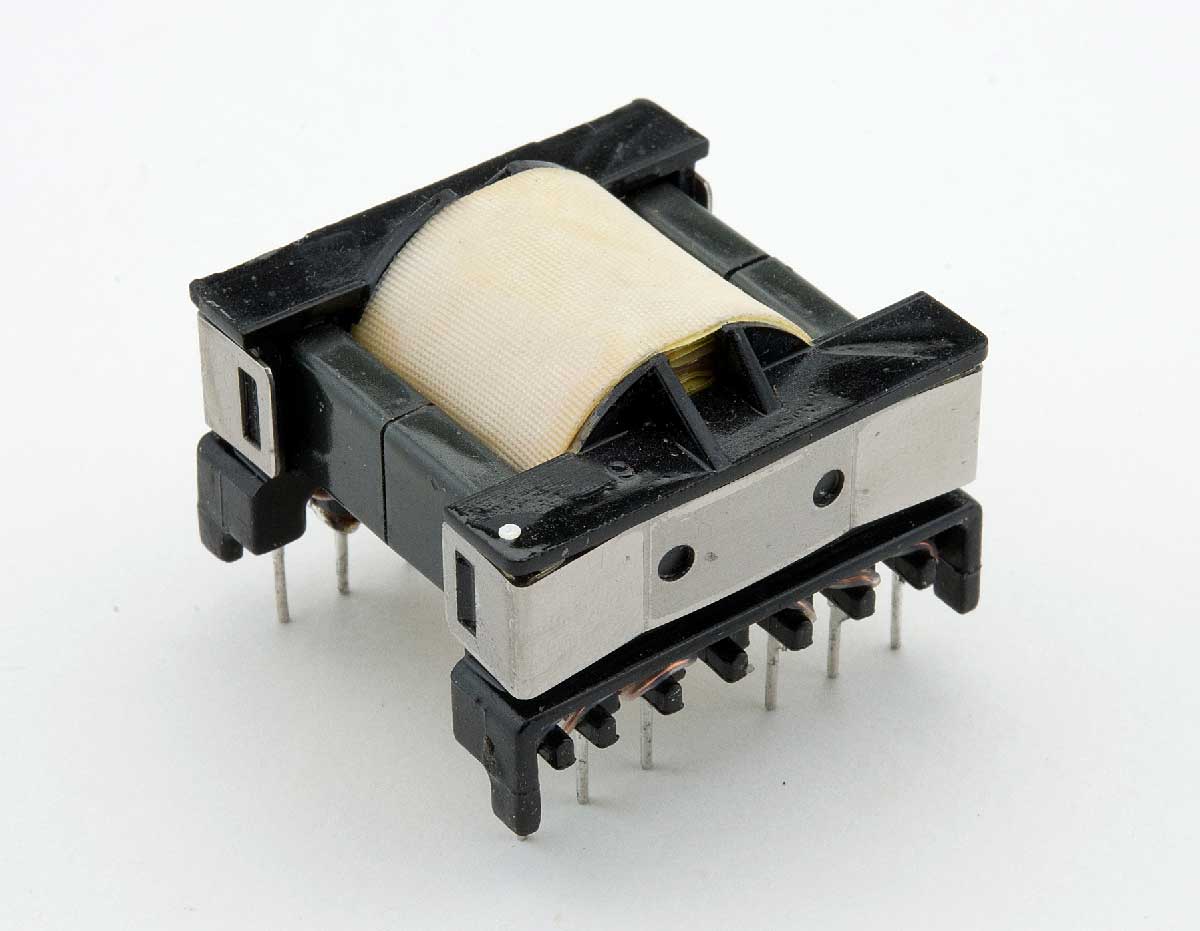

What is a Half Bridge Transformer?

To regulate the current passing through it,a half bridge transformer pairs two switching devices, usually MOSFETs or IGBTs. Two switches—one at each transformer end—make up the "half" circuit. Transformers in half-bridge configurations convert direct current (DC) into alternating current (AC) by cycling the current positive and negative. Applications requiring modest power handling commonly employ this type of transformer due to its efficiency and cost effectiveness.

Why Full Bridge Transformers Are Beneficial?

A Full bridge transformer, in contrast, makes use of four switching devices situated in a bridge arrangement.This setup is more efficient in high-power applications and gives greater control over the current flow. Systems that need more power and better voltage management benefit greatly from the full bridge architecture. Applications such as industrial machinery, electric cars, and renewable energy systems require a more balanced and symmetrical output, which the full bridge architecture can provide thanks to its four switches.

What Sets Half-Bridge and Full-Bridge Transformers Apart?

·   Power Handling: In comparison to half bridge transformers, full bridge transformers are capable of handling larger power levels.

·   Complexity: Adding switches and control circuits to a full bridge design makes it more complex.

https://cettechnology.com/high-frequency-switching-transformers/half-bridge-transformers/

· Efficiency: When dealing with systems that do not require a lot of power, a half-bridge transformer is a better choice than a full-bridge transformer.

Conclusion

Depending on the application's power needs,complexity, and budget, a half bridge or full bridge transformer may be more appropriate. There is a time and a place for both economical solutions for moderate power demands and efficient designs for large-scale systems. CET Technology offers advanced transformer technology that can meet modern power conversion demands.
